21L Clips/15mm

HOME>21L Clips>21L Clips/15mm

21L Clips/15mm

Product Details image


Product Features

#5,#6,#7,#8 will be the largest size in the clip of 21Type series of different structure. A flat-screen at the surface finish gloss, when it is used in some of the thickness is recommended here. The color on the size of the passed three Irohimo of white, black, transparent 15mm, 20mm, 30mm, round hole, is the most abundant in the five and 21Type series of hook type. The unique structure, we have to have a spring property only in three plastic parts without the use of a metal spring. Because it does not use the metal it is also ideal for such outdoor because it is also available in the rain or seawater. If it is possible to get used to the opening and closing method can be easily opened and closed with one hand.

How to open & close

Product Summary

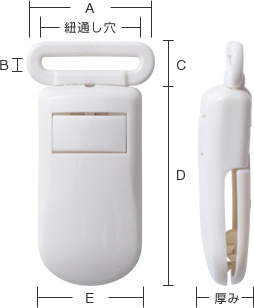

Size

A: 19.8mm
B: 2.0mm
C: 6.6mm
D: 30.8mm
E: 16.0mm
String through hole: 15.0mm
Thickness: 7.8mm

Pinching force

1.5kg
Clamping force subjected to a tensile in the state sandwiching the cotton folded clip into 4-ply handkerchief (100% cotton) Test, numerical value obtained by measuring the maximum load (kgf).
(Goods) based on the data of the polymer test and evaluation center.

Use for.....

Baby kids products, mobile phone strap suspenders neck holder
